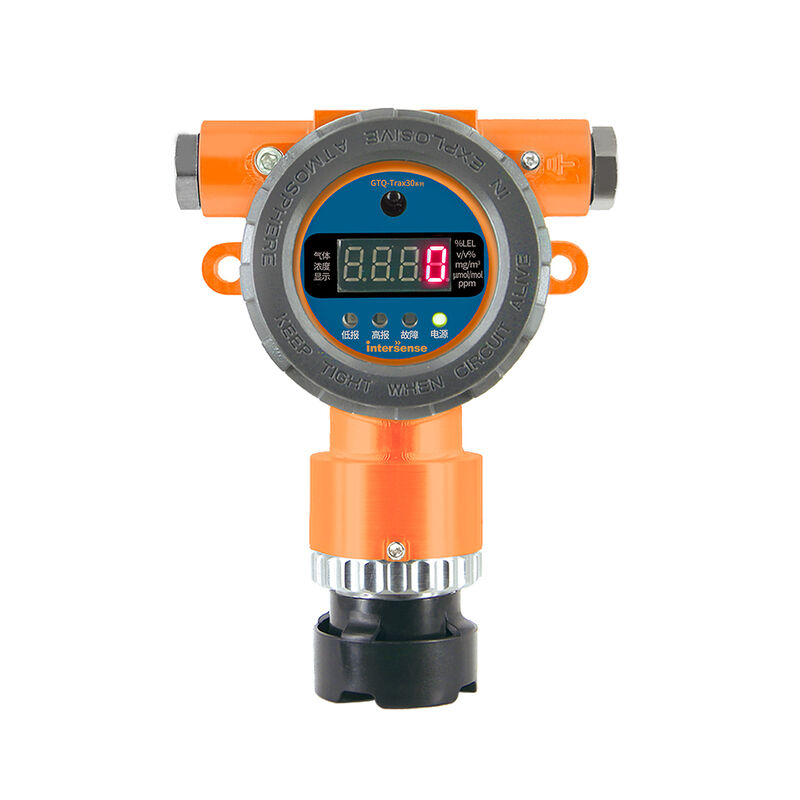

Combustible Toxic Gases Exdiict6 Fixed Gas Detector ATEX Continuous Monitoring

ATEX Combustible and Toxic gases H2s, Co, O2 LEL Fixed Gas Detectors for industrial gas detection application

Descriptions:

This series of gas detection transmitters adopt the most advanced ultra-large scale integrated circuit technology and are designed by the international standard intelligent technology level. It is a completely intelligent gas detection transmitter designed by digital and analog hybrid communication technology. The intelligent gas detection transmitter has advanced technology, excellent performance, high stability, communication and self-diagnosis functions, easy installation and maintenance, and the advanced performance of typical intelligent field monitoring instruments has been fully demonstrated, which greatly meets the needs of industry. On-site safety monitoring requires high reliability of equipment. It is widely used in petroleum, chemical industry, metallurgy, refining, gas transmission and distribution, biochemical medicine and other industries. The instrument is compatible with various control alarms, PLC, DCS and other control systems, which can realize remote detection, control and alarm.


Features:

• Sensor type: Catalytic, electrochemical, NDIR or PID gas sensor
• Gas sampling: Natural diffusion
• Power supply: DC24V±25%
• Power consumption: ≤3W
• Working method: Continuous monitoring
• Accuracy: ≤±5%F.S.
• Display and indication:
• 4-digit LED screen displays gas concentration in time
• 3 LED lights indicate detector status of power, fault and alarm
• Setting by: IR remote
• Response time:
• Catalytic sensor: ≤30s Electrochemical sensor: ≤60s
• NDIR sensor: ≤10s PID sensor: ≤10s
• Working temperature:
• Catalytic sensor: -40～50℃ Electrochemical sensor: -20～50℃
• NDIR sensor: -40～70℃ PID sensor: -40～50℃
• Working humidity: ＜95%RH (no condensation)
• Explosion-proof: Ex dⅡCT6
• Protection: IP65
• Pressure Limit: 86-106kPa
• Signal output: 4-20mA / RS485
• Relay output: 2 free contact (available for 4-20mA type only)
• Transmission distance: ≤1000m
• Dimensions: l×b×h, 210×200×105mm
• Weight: about 2100g


Technical Parameters:


​Target gases:​
